Exedy Hyper Single Clutch Kit ACURA NSX V6 3; Sprung Disk; Pull Type HH04SD1

Exedy Hyper Single Clutch Kit ACURA NSX V6 3; Sprung Disk; Pull Type, Exedy Hyper Single Clutch Kit ACURA NSX V6 3.2; Req. Trans. Input Shaft; Sprung Disk; Pull Type

Exedy Hyper Single Clutch Kit ACURA NSX V6 3; Sprung Disk; Pull Type, Exedy Hyper Single Clutch Kit ACURA NSX V6 3.2; Req. Trans. Input Shaft; Sprung Disk; Pull Type

Item: Hyper Single Clutch; Sprung Center Disc; Pull Type Cover; Requires Flywheel Crank Bolts Part # 90011-PR7-000 (8pcs); For use w/ Hyper Accessory Kit HCAK102

Model Trim: ALL

Engine: C30A1

Fuel Type: ALL

Item Weight: 33

SPECS: Clamp Load: 2922; Disc Diameter (Inches): 8.9; Disc Diameter (Millimeters): 225; Kit Contents: CH13S1, DH10D1, FH19, BS04; Spline Count: 24; Spline Size (Inches): 1; Spline Size (Millimeters): 26; Torque Capacity (ft/lbs.): 375

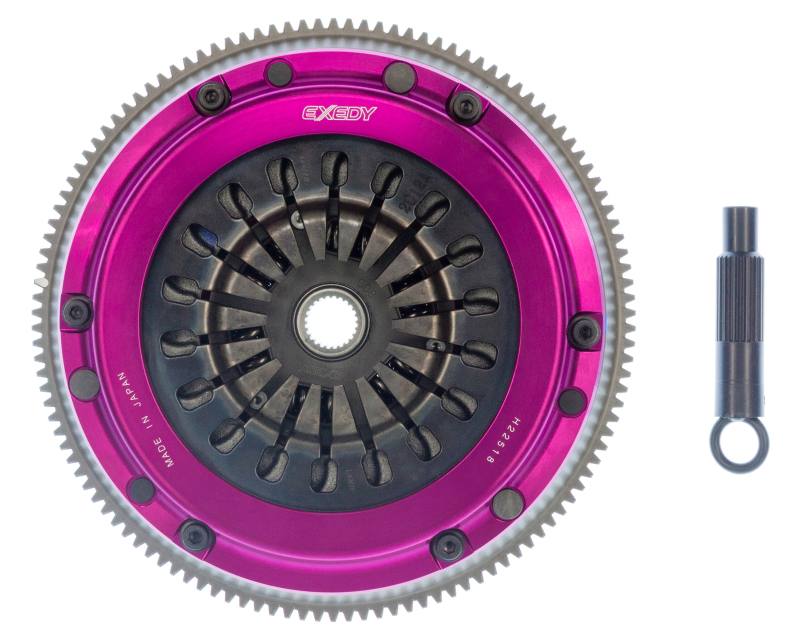

The EXEDY Hyper Single Series clutch is engineered to optimize the performance of cars that are moderately modified, but do not require the clutch capacity of a multi-plate clutch. Similar to our multi-plate clutches, it has a purple anodized, forged aluminum cover. The aluminum cover is stiffer than a stamped cover and therefore allows a higher lever ratio to maintain the pedal efforts at a reasonable level. There is no clamp load deflection as found in a pressed metal type cover. Additionally, the pressure plate features a series of turbine-like, air flow enhancing vanes that keep the clutch cooler under extreme operating conditions to improve wear life.

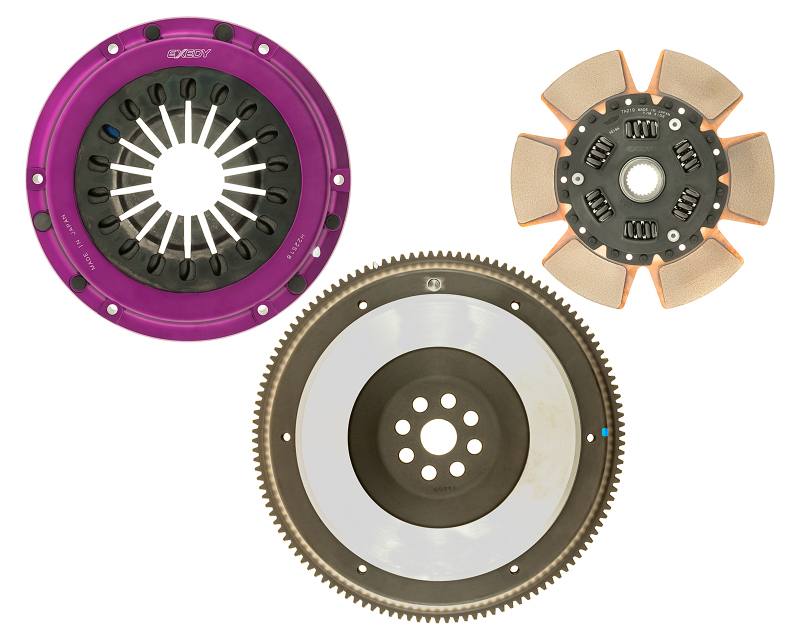

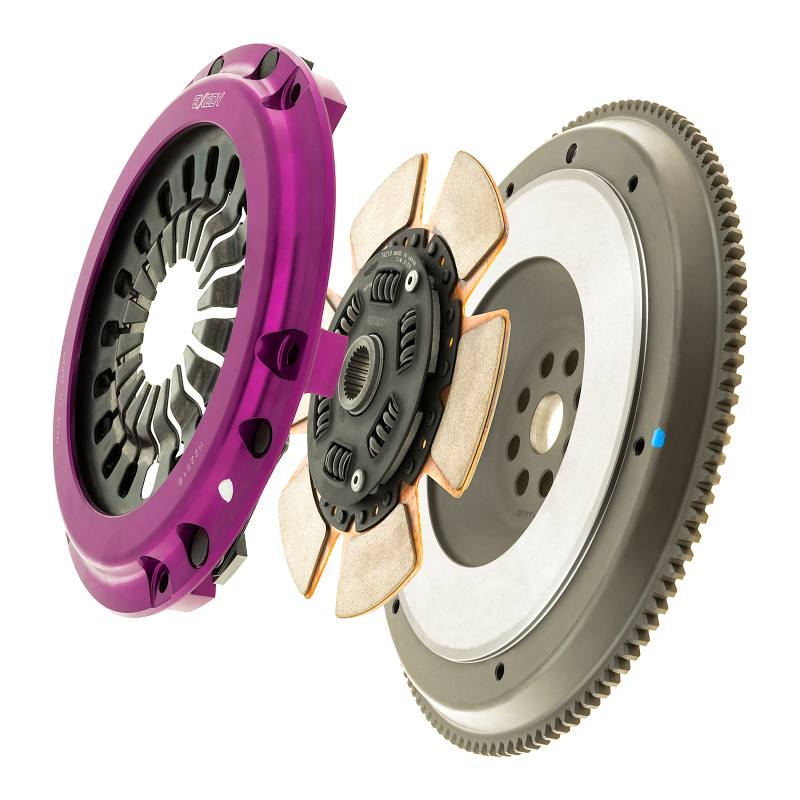

All Hyper Single clutches come with a chromoly steel flywheel and are normally supplied with a 6-puck cerametallic facing and a spring center damper disc assembly. However, on select vehicles, the new VF (Various Friction) disc may be offered. The chromoly flywheel is lighter than OEM for improved engine response, and a lighter overall assembly. The disc is generally smaller and thinner than the OEM disc making for lower inertia and therefore quicker, easier shifting and less wear and tear on the transmission synchros. The higher clamp load and cerametallic friction facings give approximately twice the holding torque of the OEM clutch and higher than other single disc clutches.

6-Puck Cerametallic Disc High friction coefficient, low wear, and a special heat resistant material [T5001] has been applied to enable the clutch size to be reduced which in turn lowers mass inertia and improves shift responses for faster gear changes particularly in racing applications. Durability is improved with the use of a stronger, smaller damper disc, designed especially for the Hyper Single clutch.

VF (Various Friction) Disc The VF enables the driver to operate the clutch through an easy-to-feel half engagement thanks to the Ultra Fiber friction material all while having a high heat dissipation and torque capacity due to the integrated metal facing. Furthermore, pedal effort has been drastically reduced and improved by the re-engineering and re-designing of the engagement point with newly developed cushioning plates.

All EXEDY Racing Hyper Single Series Clutch Kits carry SFI 1.1 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports.

PLEASE NOTE: All referenced torque ratings are measured at the wheels.

Exedy Hyper Single Clutch Kit ACURA NSX V6 3; Sprung Disk; Pull Type, Exedy Hyper Single Clutch Kit ACURA NSX V6 3.2; Req. Trans. Input Shaft; Sprung Disk; Pull Type

EXEDY OEM Replacement Clutch Kits and Replacement Parts: EXEDY is a Tier 1 OEM supplier to all major automotive, and off-highway manufacturers across the globe. This means we work hand in hand to engineer products to exact specifications and requirement as set forth by the manufacturer.

Product Lines from EXEDY Include: OEM Clutches, Sport Clutches, Stage 1 Organic, Stage 2 Cerametallic, Hyper Single Series, Hyper Multi Series, Hyper Compe Series, Hyper Carbon Series, Hyper Builder Series, Hyper Twin Series, Hyper Triple Series, Lightweight Flywheels, Replacement Parts.

EXEDY Globalparts Corporation has evolved from the business known as Daikin Clutch Corporation. All EXEDY clutches still carry the famous Daikin winged logo. The US business was established in 1967 and EXEDY/Daikin products have been manufactured in the US since 1988 for both OEM and the Aftermarket.

Sport Racing Clutch Kits from Exedy are for engineered to optimize the performance of vehicles from mildly modified to Race Cars.

EXEDY Stage 1 Organic Racing Clutches only use premium friction materials that are resistant to slippage and burst. Increased clamp loads give the necessary capacity to handle modified engines.

EXEDY Racing cerametallic clutches are designed to handle the abuse of high-power modified engines. Our cerametallic friction material can handle much more abuse than stock type disc assemblies without slipping and fading.

The EXEDY Hyper Single Series clutch is engineered to optimize the performance of cars that are moderately modified, but do not require the clutch capacity of a multi-plate clutch. For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street action as well as drag, road and rally racing. The new standard for racing clutches is now available, with the EXEDY Hyper Compe Series. The ultralight metal multi-plate was developed with a focus on those interested in racing of all sorts.

The flagship model of EXEDY clutches, the Hyper Carbon Series. In 1995 EXEDY supplied carbon clutch products for use in the pinnacle series of motorsport; Formula One. This same technology is now applied to carbon clutches developed by EXEDY for use on the street and track.

EXEDY Racing Lightweight Flywheels combine low weight, low inertia and high thermal capacity for those looking for lighter weight and faster revs.

IMAGES: Images may be a representation and may not reflect the actual product.
