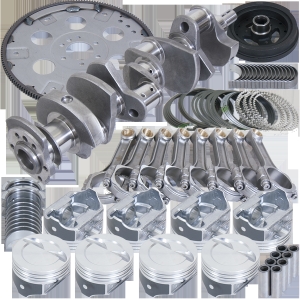

Eagle SBC Balanced Rotating Assembly 383 .040 B15404E040

Rotating Assembly - 384 CID - Cast Crank - Hypereutectic Pistons - 3.750 in Stroke - 4.040 in Bore - 5.700 in I Beam Rods - Small Block Chevy - Kit

BALANCED 3.750 CAST CRANK,5.700 I-BEAM RODS,3/8 ARP 8740 BOLTS,HYPEREUTECTIC KB CLAIMER -12CC INV. DOME 4.040 PISTONS,PLASMA-MOLY STANDARD GAP RINGS,KING SI ROD/MAIN BEARINGS, PIONEER DAMPER & 168 TOOTH FLEXPLATE.

Highlights:

• Balanced Street & Strip assembly
• displacement: 384
• pistons: KB CLAIMER
• dome volume: -12CC
• piston alloy:
• bore size:
• rings:
• piston pin height:
• pin size:
• stroke: 3.750
• crank material: cast
• rod length: 5.700
• rod design: 5140 I-Beam
• rod bolts: 3/8 ARP 8740
• bearings: King SI
• damper included: yes
• flexplate / flywheel included: flexplate

Details:

• Product Line: Street and Strip
• Cubic Inch: 384
• Intended Balance: Internal
• Balanced Kit: Yes
• Pistons Included: Yes
• Piston Manufacturer: KB
• Piston Product Line: Claimer
• Bore: 4.040 in
• Piston Style: Inverted Dome
• Piston Material Style: Hypereutectic
• Volume: Minus 12 cc
• Wrist Pin Included: Yes
• Piston Rings Included: Yes
• Ring Tension: Standard
• Crankshaft Included: Yes
• 1 / 2 Piece Rear Main Seal: 2 Piece
• Stroke: 3.750 in
• Rod Journal Diameter: 2.100 in
• Crankshaft Material Style: Cast
• Connecting Rods Included: Yes
• Beam Style: I-Beam
• Rod Length: 5.700 in
• Rod Bolt Manufacturer: ARP
• Rod Bolt Diameter: 3/8 in
• Rod Bolt Alloy: 8740
• Forged Rods: Yes
• Connecting Rod Alloy: 5140
• Flexplate Included: Yes
• Flexplate Tooth Count: 168
• Balancer Included: Yes
• Balancer Manufacturer: Pioneer
• Main Bearings Included: Yes
• Main Bearing Manufacturer: King
• Main Bearing Series: SI-Series
• Rod Bearings Included: Yes
• Rod Bearing Manufacturer: King
• Rod Bearing Series: SI-Series
• Quantity: Kit

Eagle SBC Balanced Rotating Assembly 383 .040, Eagle SBC Balanced Rotating Assembly 383 .040

Eagle SBC Balanced Rotating Assembly 383 .040, Eagle SBC Balanced Rotating Assembly 383 .040

Preparation is quite often the key to success and the team at Eagle Specialty were cognizant of this and for that reason spent ten years not only developing extensive technology and excellent designs but also forming relationships that would benefit them in the desire to create first class products and an award winning company. Eagle Specialty began small in 1992 with just a few part numbers but their desire for excellence and customer satisfaction led to the formation of a rapidly growing enterprise. Crankshafts were next on the horizon for Eagle and the potpourri of connecting rods grew also.

Now, the future of the company has been guaranteed and because of the search for improved designs and utilizing improved materials and manufacturing techniques Eagle Specialty has become the largest and most appreciated aftermarket connecting rod and crank manufacturer in the aftermarket industry. The hallmark of Eagle’s success is their drive to make the Eagle products lighter, stronger and more easily manufactured while at the same time considering diversity of product.

Excessive cost is not always an assurance of quality and Eagle’s ability to keep their production costs down through efficient manufacturing allows them to provide a product that is suited to a genre of applications at a reasonable price to their customers without the necessity for compromising on manufacturing procedures, material or quality control.

Just consider the Eagle H-beam rods and the fact that they are expertly forged from certified 4340 chromoly steel and while there are a number of companies who also use 4340 chromoly steel it is not necessarily all of the same quality steel with some having only 1.65% nickel content. Eagle relies on large scale material testing to achieve its goal of a much tighter tolerance of all alloying elements. Couple that with a primo heat treatment and tempering process and you have a 4340 steel that can test ten to fifteen percent stronger than average.

The manufacturing of the Eagle H-beam rods are from 2 piece forging that serves to strengthen the rod cap by acclimatizing the “grain” of the metal with the stress direction and Eagle does not use the imperfect “cracked cap” manufacturing so you are assured of a consummate fit since they simply machine the rod and cap perfectly. And we all know how precise a computer can be so Eagle uses the highly developed Sunnen Kross grinding system to give your product a perfect bore size.

And if you are in the market for a crankshaft the team at LMPerformance knows you want the smoothest, flattest surface possible so that the crankshaft and cams on your car are properly lubricated thus minimizing heat and fatigue. Eagle has thought of this and their crankshafts are polished on impressive Q-PAC micropolishing equipment and the piece de resistance, the impressive ESP Armor surface finishing process, gives your crankshaft a mirror like finish that allows oil to slip freely from the surface. And as an added bonus other fluids including water will flow more easily from the crankshaft and the result will be more corrosion resistance.

* This is a universal item without fitment details. Please make sure this item is for your application. LMP does not guarantee fitment on universal items.

IMAGES: Images may be a representation and may not reflect the actual product.
