Rack and Pinion - Power - Aluminum - Black Powder Coat - GM F-Body 1967-69 - Kit
UniSteer's kits are based off the stock cross-member and steering linkage. The power rack & pinion is a narrowed GM rack. This is machined so that the internal pivot points match the dimensions of the original center link and control arms on the Camaro front end. This gives you the steering you deserve.
The racks come mounted to a simple one piece bracket that mounts up right behind the stock cross member at the rear lower control arm bolts. Simply slide out the original bolts and replace with the supplied longer bolts to install the rack. The power rack & pinion comes with a new set of bolt-on steering arms which mount to the original spindles and ensure you maintain your turning radius.
These kits can be used with either the factory column or an aftermarket column, Choose whether you want a two or three u-joint shaft kit and what column you want to mount the shaft kit to - factory, 1 DD or 1 - 48 tooth spline. If using the factory column, you will also want to purchase our Factory Column adaptor which bolts into place on the factory column replacing the rag joint and giving you a spline to attach a u-joint.
The Power rack kits have been successfully used on cars with small block and big block motors. Headers can present an issue with clearance for the shaft linkage.
Note: Most aftermarket Heads have raised exhaust floors by 1/4 to 1/2 which does not make clearance any easier.
Tech Info:
- Pinion Type/Size: 17mm DD
- Amount of Travel: 5
- Turns Lock to Lock: 2.5 Turns
- Pressure Port Size: Banjo - 6 AN (lower)
- Return Port Size: Banjo - 6AN (upper)
- Pump Required: Low Flow / Pressure
- Inner End Threads: M14 x 1.5
- Outer Ends: 10002

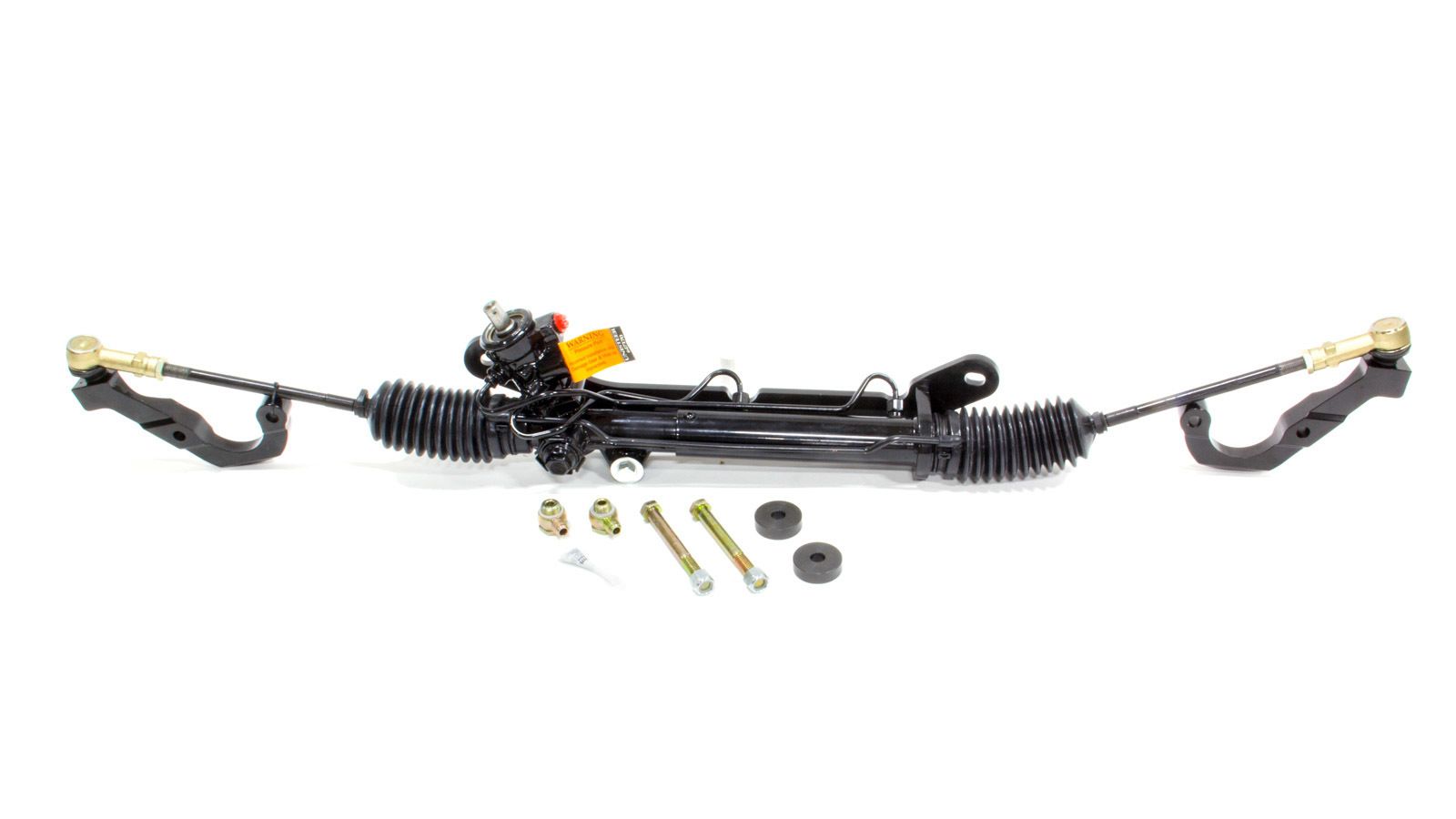

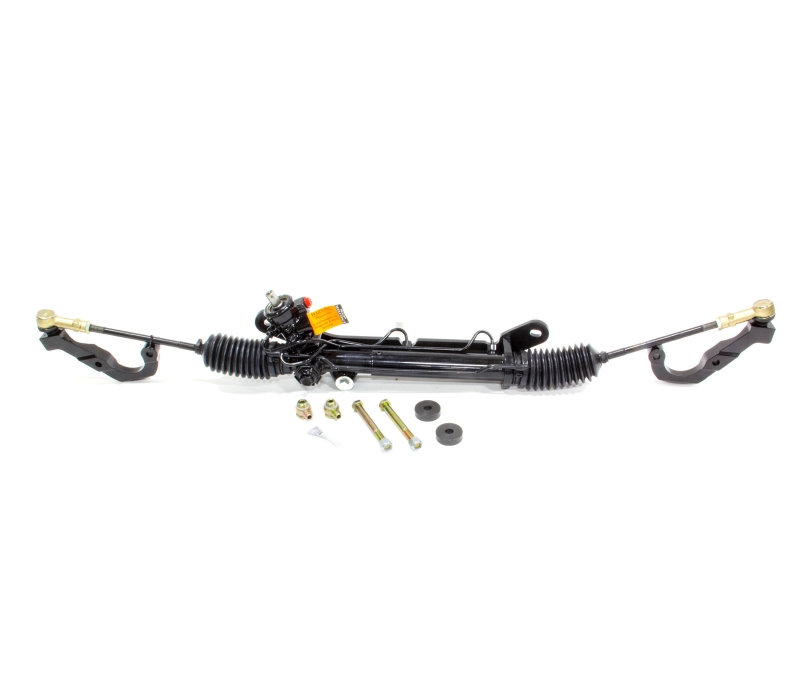

Kit Includes:
- Rack and Pinion
- Outer Tie Rod Ends
- Mounting Bracket
- Mounting Hardware
UNISTEER PERF PRODUCTS Power Rack & Pinion - 67-69 Camaro, UNISTEER PERF PRODUCTS Power Rack & Pinion - 1968-74 Nova
Unisteer Performance Products is a custom street rod and muscle car steering specialist. They offer manual, hydraulic, and electric power steering racks and components to fit a variety of applications.
