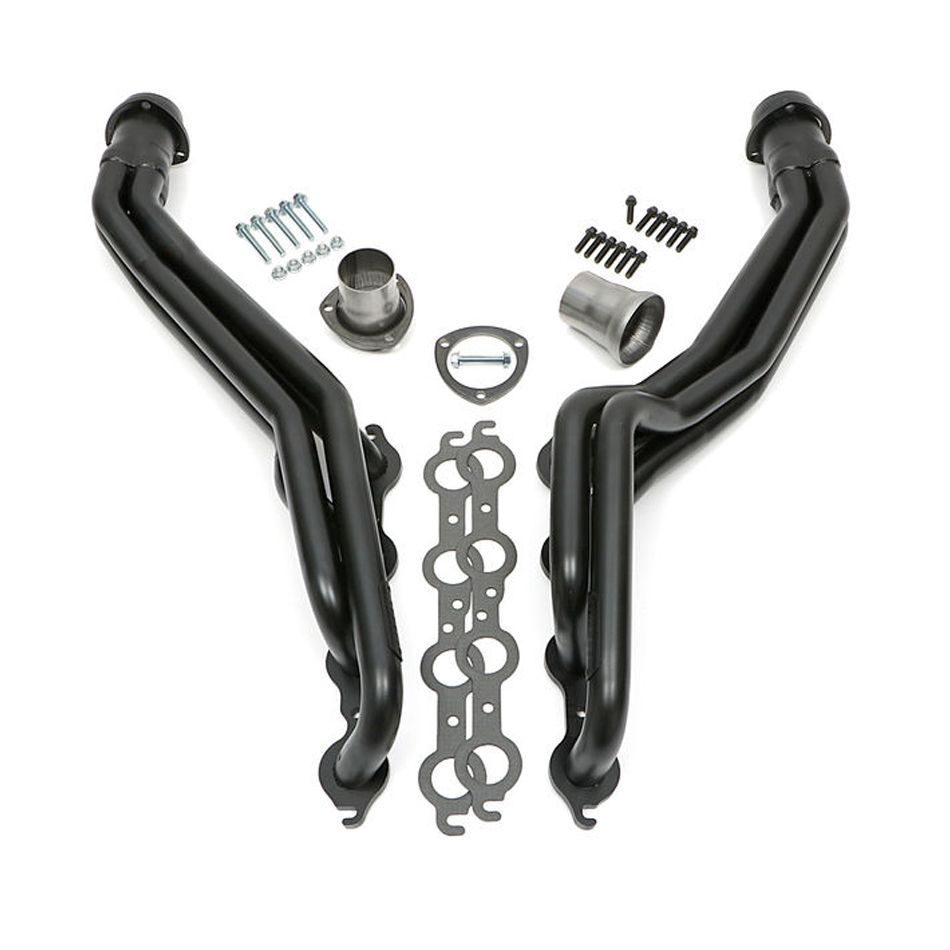

Headers - 1-1/2 in Primary - 2-1/2 in Collector - Long Tube - Steel - Natural - 2WD - GM LS-Series - GM Compact Truck 1982-2004 - Pair
INSTALLATION NOTES Requires Trans-dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel)
PACKAGE CONTENTS Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
PRODUCT SPECIFICATIONS
- TUBE DIAMETER: 1-1/2 in.
- TUBE STYLE: Long Tubes
- COLLECTOR STYLE: BALL and SOCKET Style (Gasketless)
- AIR CONDITIONING: Yes
- AUTOMATIC TRANSMISSION - COLUMN: No
- AUTOMATIC TRANSMISSION - FLOOR: Yes
- MANUAL TRANSMISSION - COLUMN: No
- MANUAL TRANSMISSION - FLOOR: Yes
- COLLECTOR ATTACHMENT: 3 in.
- COLLECTOR DIAMETER: 3 in.
- COLLECTOR SIZE: 3 in.
- REDUCER OUTLET SIZE: 2-1/2 in.
- EXHAUST SYSTEM DIA: 2-1/2 in.
- CONTENTS: Headers, gaskets, 3-bolt exhaust adapters, mounting hardware
- DRIVETRAIN: 2WD
- E.O. #: No
- EMISSIONS NOTES: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
- ENGINE: Chevy LS Series
- FINISH: Uncoated
- FINISH TYPE: Uncoated Mild steel
- FLANGE STYLE: Standard
- FLANGE THICKNESS: 0.375 in.
- PRODUCT TYPE: Headers
- HEADER PORT SHAPE: Round
- HEADER STYLE: Long Tube
- PORT SHAPE: Round
- POWER STEERING: Yes
- MATERIAL: Mild Steel
- TUBE DESIGN: Standard
- TUBE LENGTH: Long Tubes
- TUBE MATERIAL THICKNESS: 16g
- TUBE SIZE: 1-1/2 in.
- VARIATIONS: 69050, 69053, 69056
- INSTALLATION NOTES: Requires Trans-dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel)
- HEAD TYPE: Factory Heads
- WITH A.I.R. SYSTEM: No
- WITH EGR: No
- WELD-UP: No
- TUNED: No
- BOLTS/STUDS INCLUDED: Yes
- CATALYTIC CONVERTER(S) INCLUDED: No
- COLLECTOR BOLTS INCLUDED: Yes
- CROSSOVER PIPE INCLUDED: No
- GASKET OR SEAL INCLUDED: Yes
- HEADER FASTENERS INCLUDED: Yes
- INSTALLATION HARDWARE INCLUDED: Yes
- MOTOR MOUNTS INCLUDED: No
- REDUCERS INCLUDED: Yes
- Y-PIPE INCLUDED: No
- QUANTITY: Sold as a pair.
- PRIMARY TUBE GAUGE: 16g
- PRIMARY TUBE DIAMETER (IN): 1.50 in.
- PACKAGE CONTENTS: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- HEADER MATERIAL: Mild Steel
- HEADER FINISH: Uncoated
- CYLINDER HEAD PORT SHAPE: Round
- CYLINDER HEAD: Stock Profile Heads
- VEHICLE FAMILY: Chevy/GMC S10/S15 Family; 1982-04
- HEADER CONSTRUCTION: MILD STEEL- Standard-Duty
- REPLACEMENT GASKET: 27470
- REPLACEMENT HEAD FLANGE GASKET: 27470
Originally designed for straight-line drag racers, word spread quickly about Hedman Hedder’s reputation for building quality headers designed for maximum power at a reasonable price. Today, Hedman not only sells headers but full exhaust kits and components.
